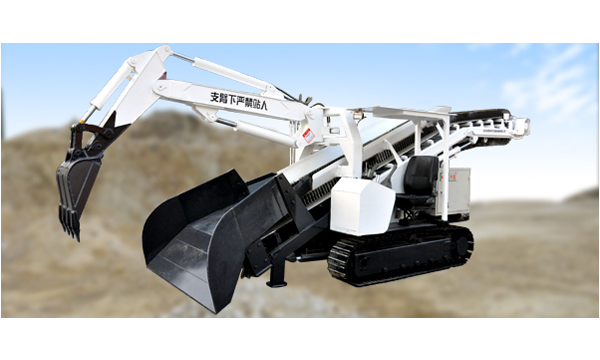

FRX660 Crawler Mucking Loader

Item Units Parameter Value
Model FRX660
Loading Capacity m³/h ≥ 60
Total Weight kg 5300 ± 5%
Working Arm Swing Angle ° ± 130°
Ground Clearance mm ≥ 180
Digging Force T 0.75
Oil Tank Capacity L 160
Digging mm ≤ 3200
Digging Distance mm 1000
Unloading mm 1300 to 1800
Digging Depth mm ≤ 400
Grade Capacity ° ≤ 30
Max. Oil Temperature ℃ 70 ± 5%
Motor Power Kw 22
Walking Speed km/h ≤ 2.5 ± 5%
System Pressure MPa 20
Control Voltage V 36
Min. Adaptable Roadway Section m ＞ 2.2
Electrical Apparatus Insulation Three Phase MΩ ＞ 1.5
Inter Phase MΩ ＞ 1.5
Dimension Length mm 5200 ± 50
  mm 1700 ± 50
Heigth mm 1900 ± 50
