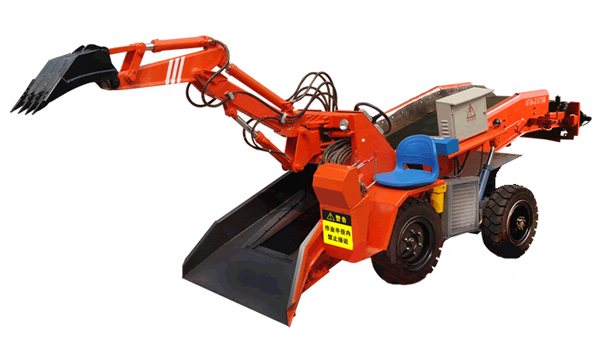

LWT-50/4Q-XXX-D Four Wheel Small Scale Mucker Loader (Electric)

Main Technical Parameter Standard
1 Load Capacity(m³/h) About 50
2 Vehicle Weight (kg) 2350
3 Minimum Turning Radius (m) 3.7
4 Digging (mm) 2900
5 Digging (mm) 1420
6 Digging Depth (mm) 300
7 Digging Distance (mm) 1320
8 Unloading (mm) 1400
9 Unloading Distance (mm) 1300
10 Grade Ability (°) ≦15 (Hardstand)
11 Belt Speed (m/min) 48
12 Traveling Speed (km/h) 3
13 Minimum Ground Clearance (mm) 180
14 Wheel Distance (mm) 1140/1100
15 Wheelbase (mm) 1500
16 Rated Working Pressure (MPa) 12.5
17 Motor Power (Kw) 15
18 Max. Material Throughput Size (mm) 600 × 500 × 380
19 Adaptable Roadway Slope (°) ≦8
20 Adaptable Minimum Roadway Section (m) 1.8 × 1.8
21 Dimension (Length × × ) 4800 × 1300 × 1500
