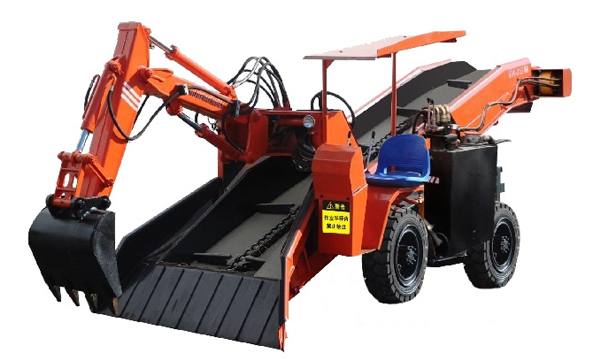

LWT-60/4Q-XX-CD-G Four Wheel Drive Scraper Rock Mucking Loader

Main Technical Parameter Standard
1 Load Capacity(m³/h) About 60
2 Vehicle Weight (kg) 3900
3 Minimum Turning Radius (m) 4
4 Digging (mm) 2700
5 Digging (mm) 1450
6 Digging (mm) 350
7 Digging Distance (mm) 1600
8 Unloading (mm) 1550
9 Unloading Distance (mm) 1650( Can be Lengthened )
10 Grade Ability (°) ≦18 (Hardstand)
11 Walking Speed (km/h) 3
12 Minimum Ground Clearance (mm) 180
13 Wheel Distance (mm) 1230
14 Wheelbase (mm) 1550
15 Rated working pressure (Mpa) 12.5
16 Motor Power(Kw) 22
17 Max. Material Throughput Size (mm) 700 × 500 × 400
18 Adaptable Roadway Slope (°) ≦12
19 Adaptable Minimum Roadway Section (m) 2 × 2
20 Dimension(Length × × ) 5200 × 1500 × 1600
