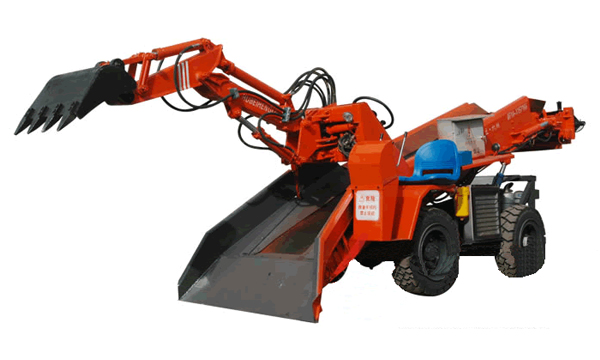

LWT-60 4Q-XX-CD Four Wheel Drive Mucker Loader (Standard Arm)
| Main Technical Parameter | Standard | |
| 1 | Load capacity(m³/h) | About 60 |
| 2 | Vehicle Weight (kg) | 3050 |
| 3 | Minimum Turning Radius (m) | 4.5 |
| 4 | Digging (mm) | 2950 |
| 5 | Digging (mm) | 1450 |
| 6 | Digging Depth(mm) | 300 |
| 7 | Digging Distance (mm) | 1380 |
| 8 | Unloading (mm) | 1700 |
| 9 | Unloading Distance (mm) | 1600 |
| 10 | Grade ability (°) | ≦18 (Hardstand) |
| 11 | Belt Speed (m/min) | 48 |
| 12 | Walking Speed (km/h) | 3 |
| 13 | Ground Clearance (mm) | 220 |
| 14 | Wheel Distance (mm) | 1245 |
| 15 | Wheelbase (mm) | 1550 |
| 16 | Rated Working Pressure (MPa) | 12.5 |
| 17 | Motor Power (Kw) | 15 |
| 18 | Max. Material Throughput Size (mm) | 600 × 500 × 440 |
| 19 | Adaptable Roadway Slope (°) | ≦8 |
| 20 | Adaptable Minimum Road Way Section (m) | 2 × 2 |
| 21 | Dimension (Length × × ) | 5150 × 1500 × 1780 |
