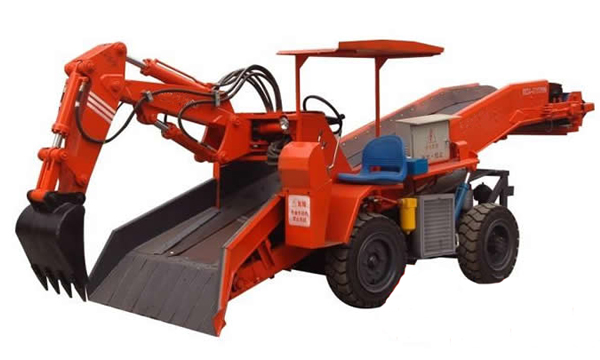

LWT-80 4Q-CD Four Wheel Drive Heavy Duty Wide Arm Rock Mucker Loader

Main Technical Parameter Standard
1 Load Capacity(m³/h) About 80
2 Vehicle Weight (kg) 3650
3 Minimum Turning Radius (m) 5
4 Digging (mm) 2800
5 Digging (mm) 2400
6 Digging Depth (mm) 400
7 Digging Distance (mm) 1680
8 Unloading (mm) 1750
9 Unloading Distance (mm) 2000
10 Grade Ability (°) ≦18 (Hardstand)
11 Belt Speed (m/min) 48
12 Traveling Speed (km/h) High Speed 5.5/ Low Speed 3
13 Minimum Ground Clearance (mm) 220
14 Wheel Distance (mm) 1480
15 Wheelbase (mm) 1650
16 Rated Working Pressure (MPa) 12.5
17 Motor Power (Kw) 16.5(15)
18 Max. Material Throughput Size (mm) 800 × 600 × 450
19 Adaptable Roadway Slope (°) ≦8
20 Adaptable Minimum Roadway Section (m) 2.2 × 2.4
21 Dimension (Length × × ) 5600 × 1700 × 1690
