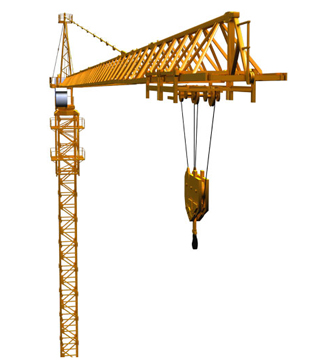

РусскийTC5610-6 Hammer Head Crane
| Rated Load Moment (kN.m) | 800 | ||||||||
| Lift (m) | Multiplying Power | Independent Stationary Type | Dependent Type | ||||||
| α＝2 | 40.5 | 220 | |||||||
| α＝4 | 40.5 | 110 | |||||||
| Working Radius (m) | Max. | 56 | |||||||
| Min. | 2.5 | ||||||||
| Max. Lifting Load (t) | 6 | ||||||||
| Hoisting Mechanism | Multiplying Power | α＝2 | α＝4 | ||||||
| Speed (m/min) | 80 | 40 | 8.88 | 40 | 20 | 4.44 | |||
| Lifting Capacity (t) | 1.5 | 3 | 3 | 3 | 6 | 6 | |||
| Power (Kw) | 24/24/5.4 | ||||||||
| Hauling Mechanism | Speed (m/min) | 50/25 | |||||||
| Power (Kw) | 3.3/2.2 | ||||||||
| Swing Mechanism | Speed (r/min) | 0-0.65 | |||||||
| Power (Kw) | 7.5 | ||||||||
