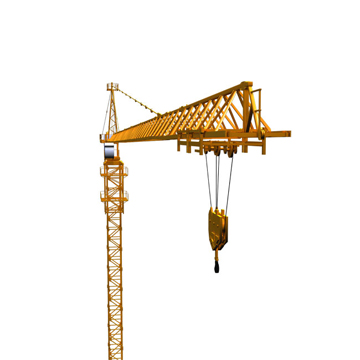

TC7052-25 Hammer Head Crane

Rated Load Moment (kN.m)		4000
Lift (m)		Multiplying Power	Independent Stationary Type				Dependent Type
		α＝2	73				275
		α＝4	73				137.5
Working Radius (m)		Max.			70
		Min.			3.5
Max. Lift Load		25
Hauling Mechanism	Multiplying Power	α＝2			α＝4
	Speed (m/min)	80	53	27	40	27 27		13.5
	Lifting Capacity (t)	1	6.25	12.5	2	12.5		25
	Power (Kw)	63
Hauling Mechanism		Speed (m/min)			0 to 100
		Power (Kw)			11
Swing Mechanism		Speed (m/min			0 to 0.72
		Power (Kw)			7.5 × 3
