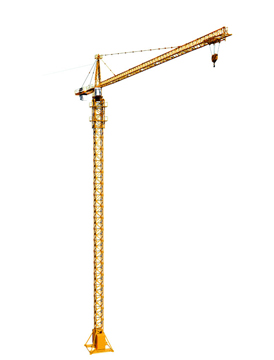

TC7525-16D Hammer Head Tower Crane

Rated Load Moment (kN.m)		2500
Lift (m)		Multiplying Power	Independent Stationary Type				Dependent Type
		α＝2	51.3				240.3
		α＝4	51.3				120.15
Working Radius (m)		Max.		75
		Min.		3.5
Max. Lift Load		16
Hauling Mechanism	Multiplying Power	α＝2				α＝4
	Speed (m/min)	75	37.5 40		37.5			18.75
	Lifting Capacity (t)	4	8 2		8			16
	Power (Kw)	63
Hauling Mechanism		Speed (m/min)				0 to 100
		Power (Kw)				11
Swing Mechanism		Speed (m/min				0 to 0.6
		Power (Kw)				7.5 × 2
