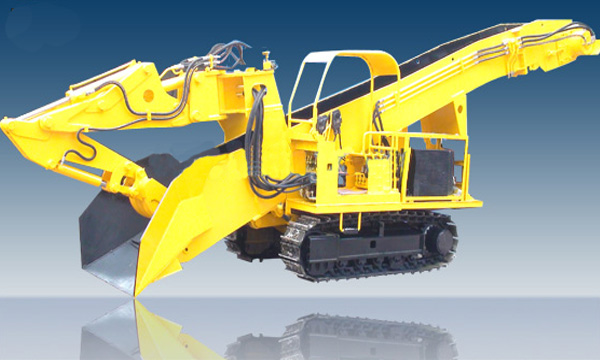

ZWY-150/47.2L Coal Mine Mucker Loader

Item Units Parameters
Loading Capacity m3 /h 150
Maximum Gradeability degree 28
Muck mm 4200 (Standard Arm), 5800 (Extension Jib)
Muck mm 3100
Discharge mm 1800-2600
Depth of Low Gathering mm 800
Traveling Speed km/h 1.5
Scraper Chain Speed m/s 0.5
Total Motor Power Kw 45+2.2
Oil Tank Capacity L 260
Rated Working Pressure MPa 18
Track Link Inside mm 1000
Road Clearance mm 260
Ground Pressure MPa 0.07
Noise dB(A) 97
Weight t 11.5
Dimension Length mm 7900
  mm 2000
  mm 2300
