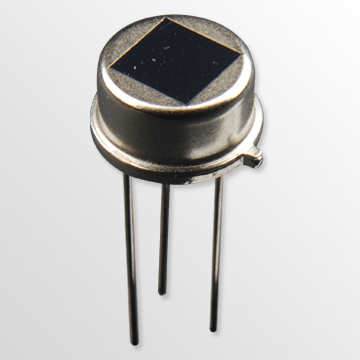

D205B

Window Size 4.9 × 4.9 mm
Infrared Receiver Electrode 0.7 × 2.4 mm, 4 Elements
Packaging TO-5
Wave Length 5-14µ m
Transmittance ≥75%
Output Signal Peak [Vp-p] ≥5000 mV
Response Rate ≥4300 V/M
Detectivity(D﹡) 1.6 × 108 cm Hz½/W
Noise Peak [Vp-p] <70 mV
Output Balance <10%
Source Voltage 0.3~1.2 V
Power Voltage 3~15 V
Operating Temperature Range -30~70°C
Storage Temperature Range -40~80°C
