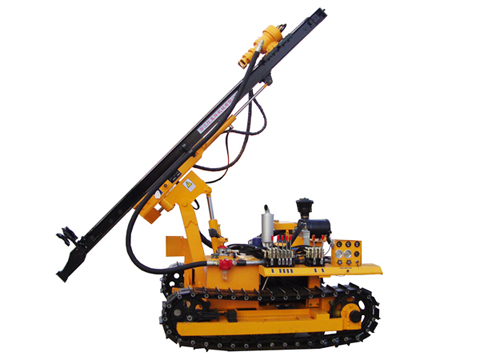

HC725B
| Model | HC725B |
| Applicable Rock | F= 6~20 |
| Drilling Diameter | 80 to 115 mm |
| Vertical Drilling Hole Deep | 25 m |
| Main Power | 33 Kw |
| Traveling Speed | 2.4 km/h |
| Stand-Alone Grade Ability | 25° |
| Maximum Hoist Capacity | 12 kN |
| Once Feeding Stroke | 3000 mm |
| Working Air Pressure | 0.5 MPa to 1.4 MPa |
| Gas Consumption | 7 to 12 m³/min |
| Rotating Speed | 0 to 70 r/min |
| Drill Specification | Φ 60 × 2000 mm |
| Total Weight | 3200 kg |
| Overall Dimension (Length × × ) | 4250 × 1980 × 2260 |
