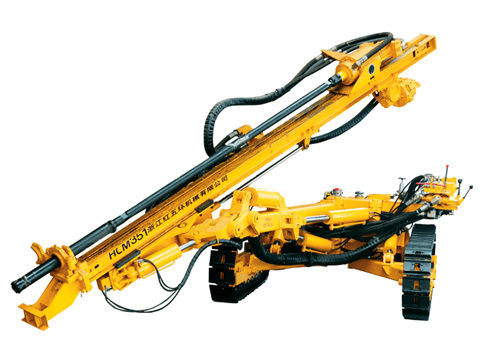

HCM351
| Model | HCM351 |
| Working Air Pressure | 1.0 MPa to 2.4MPa |
| Air Consumption | 17 to 21m3/min |
| Matching Impactor | Standard DHD340 Optional DHD350 |
| Walking Speed | 3 km/h |
| Maximum Horizontal Drilling | 3300 mm |
| Min. Level Drilling | 254 mm |
| Turret Head Feeding Stroke | 4120 mm |
| Run of Steel | 3000 mm |
| Carriage Compensated Length | 1200 mm |
| Max. Carriage Angle | 180° |
| Maximum Horizontal Pendulum Angle of Drilling Arm | Right: 45° Left: 45° |
| Rotary Speed | R |
| Rotary Torque | 2000 N·m |
| Grade Ability | 26° |
| Chassis Clearance (Min.) | 254 mm |
| Total Weight | 5000 kg |
| Overall Dimension (Length × × ) | 5900 mm × 2200 mm × 1950mm |
