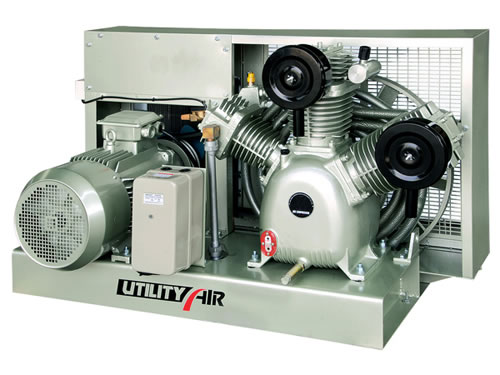

Medium Pressure Piston Air Compressor

Description
Medium pressure piston air compressor (medium pressure piston compressor) has low discharge temperature, small vibration, low noise and low oil consumption. This series air compressor can be divided into movable air compressor with tanks and stationary type medium pressure air compressor without tanks.

Main Features
1. Optimized design of crankshaft of medium pressure piston air compressor.
2. Using premium thermal-treated material to enhance rigidity and durability.
3. With the extraordinary life time of compressor, medium pressure piston compressor can meet the demand to work 24 hours non-stop.
4. Tapered roller, roller needle bearing pistol ring and control parts with high bearing ability to ensure high performance and reliability.
5. Professional valve and channel design, efficient middle cooling system and equipped plate fin cooler ensure safe operation of the machine, energy saving and guarantee low air discharge temperature.
6. Equipped patented inlet air muffler, medium pressure piston air compressor reduces the noise pollution to the minimum.
7. Reasonable structure, beautiful outlook, easy to maintain.

Technical Data
EW10030:

Model	Air Tank Volume (L)	Airflow Volume (m3/min)	Pressure (MPa)	Power (HP)	Power (kW)	Rotating Speed (rpm)	N.W (kg)	Overall Dimensions (cm)
EW10030	220	0.63	3	10	7.5	850	358	149 × 57 × 117

EW20030:

Model	Air Tank Volume (L)	Airflow Volume (m3/min)	Pressure (MPa)	Power (HP)	Power (kW)	Rotating Speed (rpm)	N.W (kg)	Overall Dimensions (cm)
EW20030	Without Tanks	1.2	3	20	15	820	420	148.5 × 85.5 × 81

Due to high requirement, medium pressure piston air compressors (medium pressure piston compressor) of high quality and high standards are adopted. Meanwhile, we never compromise to sacrifice quality to get low price. Equipped with accessories of liability tester (promising to guarantee the management of outsource manufacturers and quality assurance), the air compressor we provide is checked at all levels.
