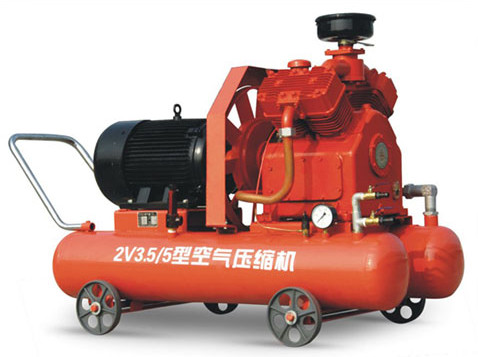

2V3.5/5
| Model | 2V3.5/5 | |
| Cylinder No.× Diameter | mm | 4 × 115 |
| Rotating Speed | rpm | 970 |
| Air Discharge Volume | m3/min | 3.5 |
| cfm | 124 | |
| Discharge Pressure | MPa | 0.5 |
| psig | 73 | |
| Air Tank Capacity | L | 250 |
| Equipped Power | Y200L1-6(18kW) 6 Pole Motor | |
| N.W | kg | 650 |
| G.W | kg | |
| Package Size (L × W × H) | mm | 1980 × 930 × 1360 |
